Blast Equipment

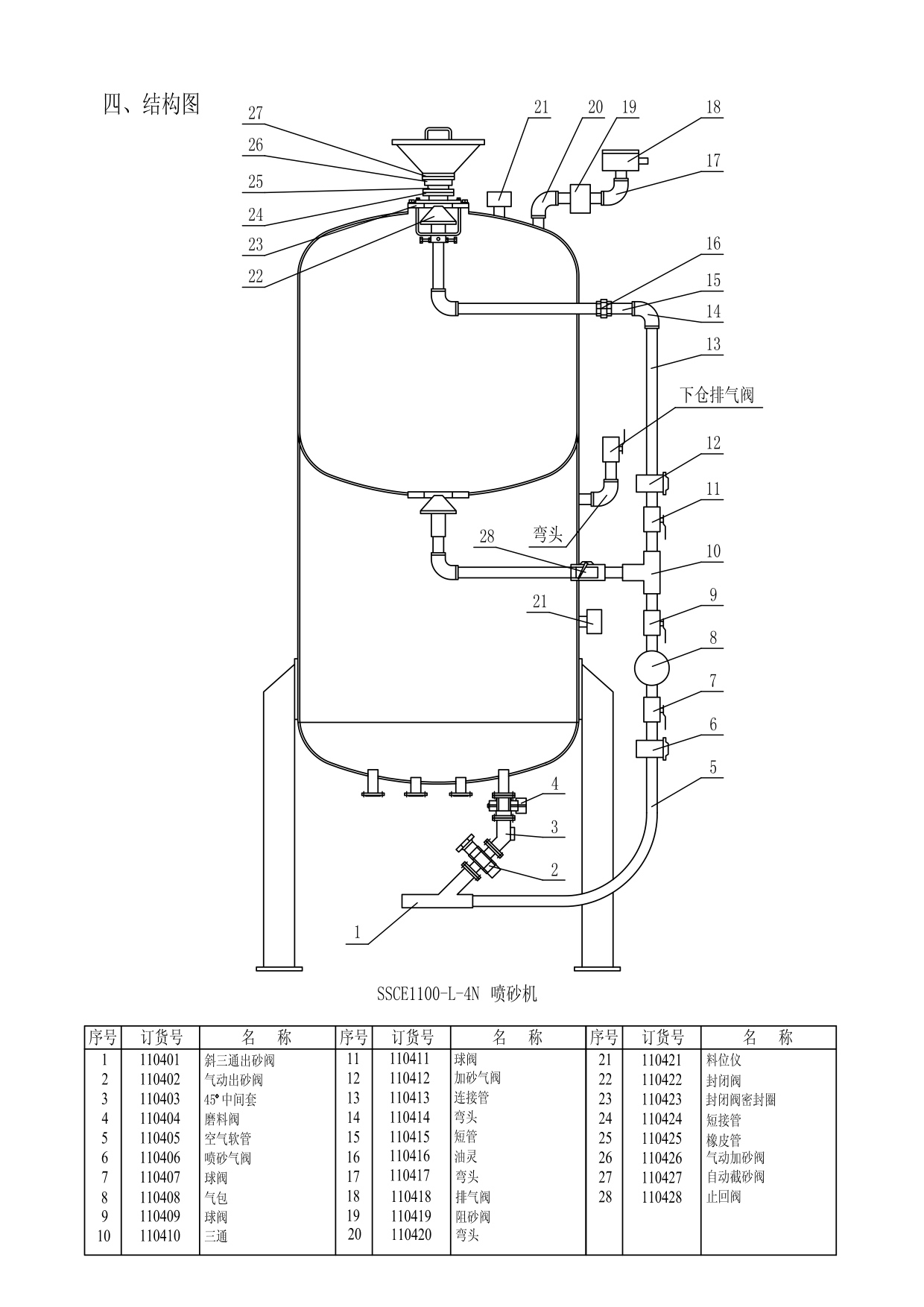

SSCE1100-L-4N

SSCE1100-L-4N

SSCE-1100-L-4N high efficiency blast machine has a superior function in removing large areas of rust. It is widely used in the field of construction, marine, bridge building, mining, oil pipeline, metallurgy, boiler, machine tool, port, hydraulic engineering and many other projects. The derusting standard reaches Sa2.5~3, and its surface roughness degree is up to 25~100μm. We offer following control system 1) Manual control 2) Pneumatic 3) Electro-pneumatic remote control systems 4) Pneumatic remote control system with air blast and blow function.



 Model

 SSCE 1100-L-4N

 Maximum working pressure

 0.8Mpa

 Control requirements

 Wireless remote control and wired remote control

 Electricity Power

 ≤0.2kw

 Nozzle diameter

 10mm

 Gun Number

 4

 Sand and soot-blowing

 Gas-sand Seperation

 Diameter

 1100mm

 Height

 3100mm

 Volume

 2.16m³



l   High efficiency and energy saving

l   Safety and Simple operation

l  Low and easy maintenance

l  Optional Pneumatic remote control system with air blast and blow function




PNEUMATIC REMOTE
ABRASIVE VALVE
WEARABLE BUSHREMOTE ABRASIVE VALVEREMOTE CONTROL SWITCH
METER VALVE A TYPEMETER VALVE B TYPESTEEL EXHARUST VALVEALUMINUM DIAPHRAGM
EXHARUST VALVE
