Dust Cleaner

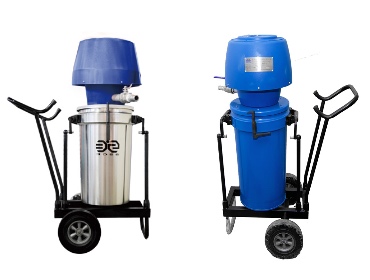

SSCE 209-80

SSCE 209-80

SSCE Super Pneumatic Rotation Vacuum Machine removes dust and particles through compressed air. It is used to collect steel shot abrasives, quartz sand, liquid sludge, dust, foreign substance and other dry or wet coarse particles. Its ideal for use in industrial factory buildings, transportation and offshore equipments.


Model

SSCE209-80

Max. Vacuum

4000mmH2O

Max. Air Flow

230Nm3/hr

Compressed Air Consumption

4.2m3/min

Compressed Air Pressure

8bar

Efficiency (Steel Grit )

500kg/h

Max Suction Distance

Steel grit

≤40m

Noise Level

≤70dB(A)

Filter Type

Cartridge

Filter Material

Polyurethane

Filter Area

2.5m2

Tank Material

铁制

Container Volume

80L

Standard Size of Suction Hose

2''

Standard Length of Suction Hose

20m

Dimensions

640(L)×450(W)×950(H)

Weight

38kg




l  Air supply, no electric power requirement

l   High vacuum, powerful suction ability

l   No movable parts, no electric current, no wear parts

l   No motor working

l  Quick, high, efficiency and recovery the wet and dry material ( special parts need for wet material recovery)

l  Use for various material

l  Sturdy and durable frame,long service life especially used in heavy industry




操作图3.jpgSSCE 204-240.jpg吸砂管1.jpg
